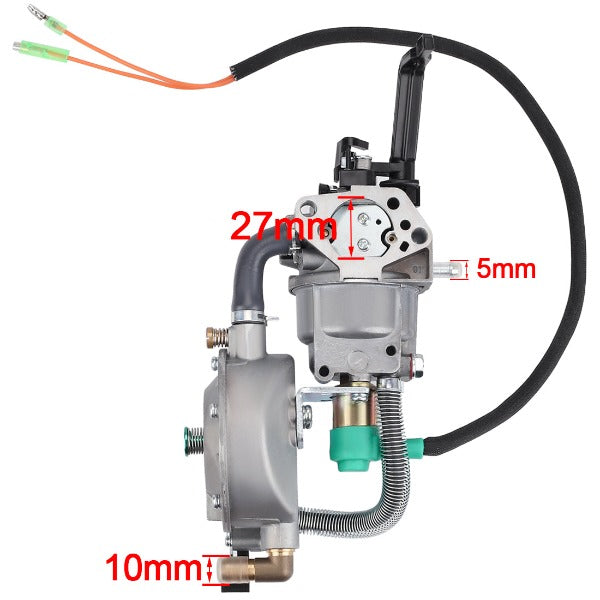

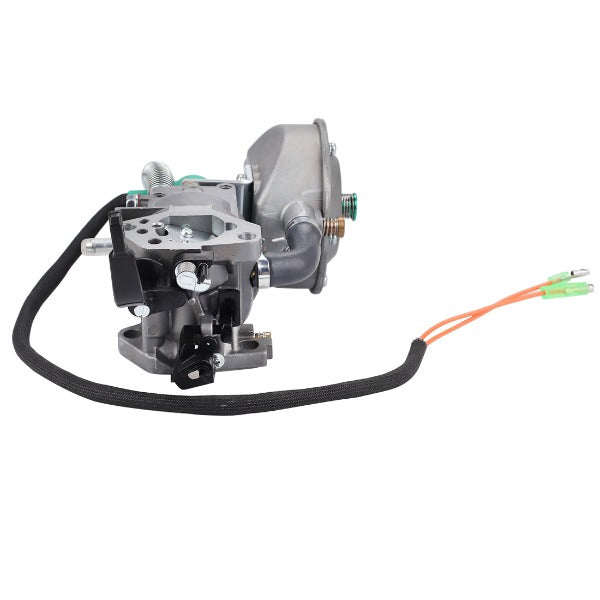

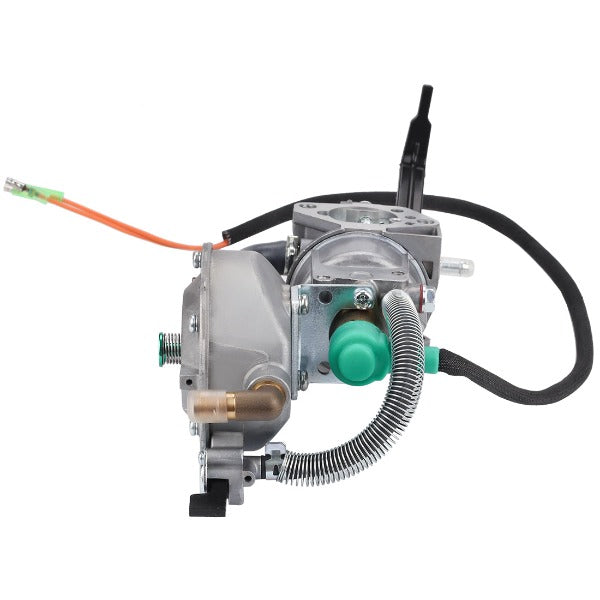

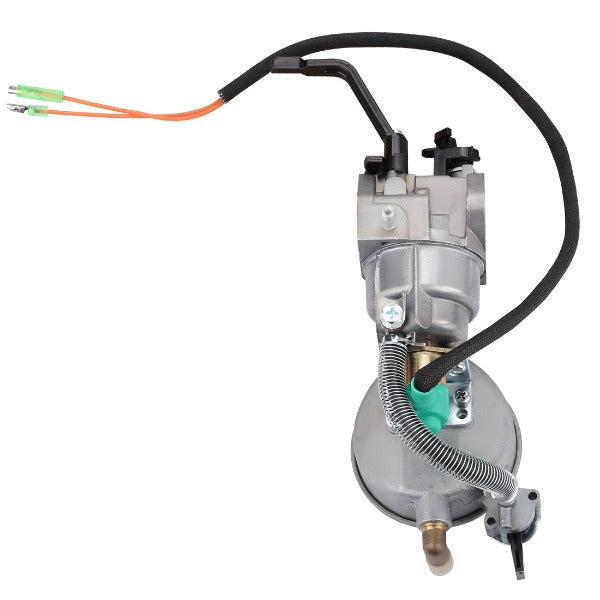

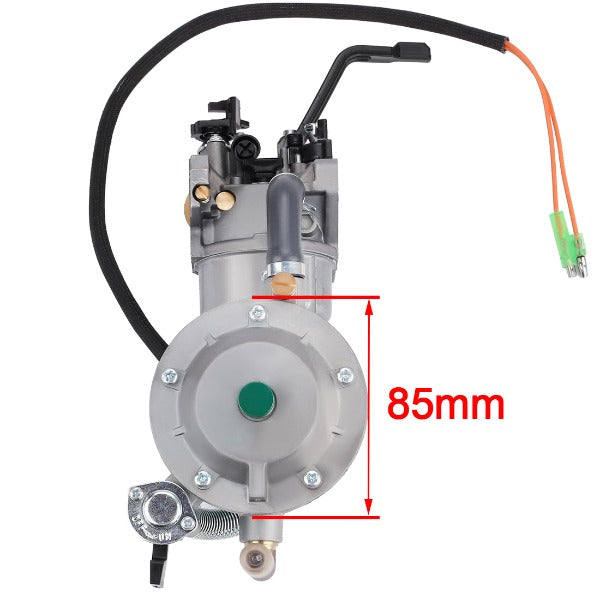

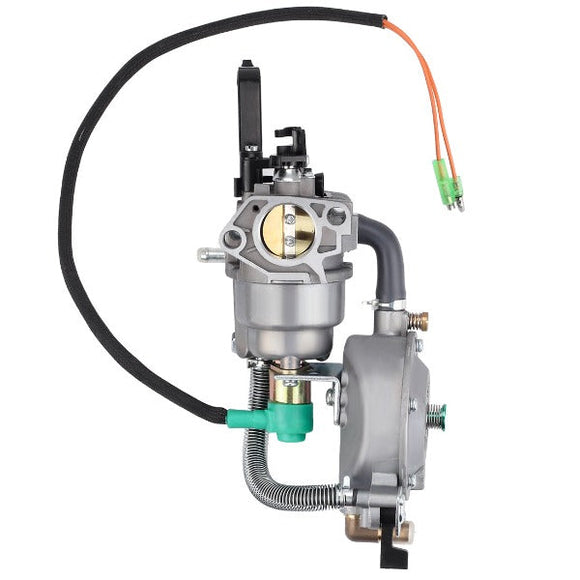

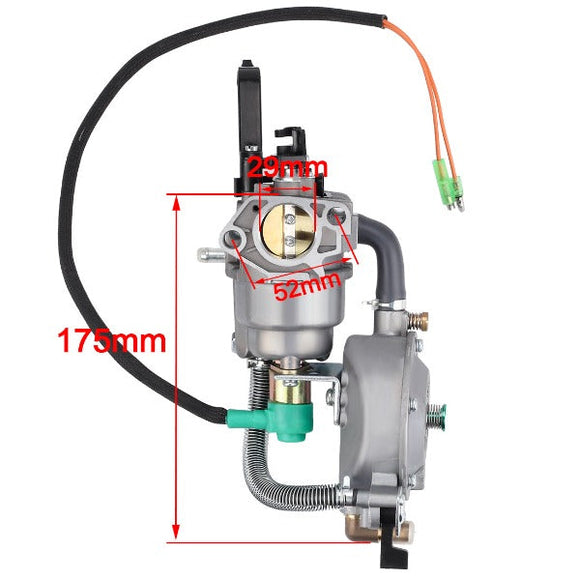

Hipa Dual Fuel Carburetor LPG / CNG Conversion Kit For Champion 100297 8000W 10000W 459cc Engine Generator

Model Fit  & Replacement Parts Guide

Manual Choke Carburetor Used On:
Honda GX390 188F 13-14Hp Engine generator.
Champion 100153 100165 100296 100155 100230 100297 8000W 10000W 459cc Engine Generator.

Specifications:
Generator type: GX390 188F portable gasoline Output: 4.5-5.5KW LPG (liquefied gas)
pressure range: 2.8 KPA--3.8 KPA CNG pressure range: 2.0 KPA--2.6 KPA
Pressure regulating valve output pressure: 0.03-1.56KPA
Pressure regulating valve closing pressure: 3.50KPA.

How does it work:
1. Combustible gas can be converted from high pressure gas to low pressure gas and supply gas smoothly.
2. When the generator started ,the negative pressure enter into the pressure regulating valve through the mixer, the sealing arm swing of the valve open, the combustible gas supply generator after decompression, so the machine work orderly.
3. When the generator closed, the pressure regulating valve will be closed at the same time, the gas passage will be cut off, the machine complete the shutdown.
4. Installation the LPG/CNG conversion kit, the original power of generator is not effected
