$12.98 USD $15.98 USD Save $3.00 USD

Shipping calculated at checkout

Hipa Store SKU: 01-3799-B1

Model Fit Guide

FS 90 R Carburetor Replaces

  • ZAMA C1Q-S174 C1Q-S173 C1Q-S176 C1Q-S131 C1Q-S110
  • Sthil 4180 120 0610, 4180 120 0611, 4180 120 0613


Parts for Stihl String Trimmer FS 90 FS 90 R FS 90 K FS 87 FS 87 R FS 100 FS 110.
Parts for Stihl Pole Pruner HT100 HT101 HT130 HT131.
Parts for Stihl Kombi Motor KM90 KM100 KM110 KM130.
Parts for Stihl Edger FC100 FC110 FC90 FC90-Z FC95 FC95-Z.
Parts for Stihl Brushcutter FS100 FS90.

Product Specifications

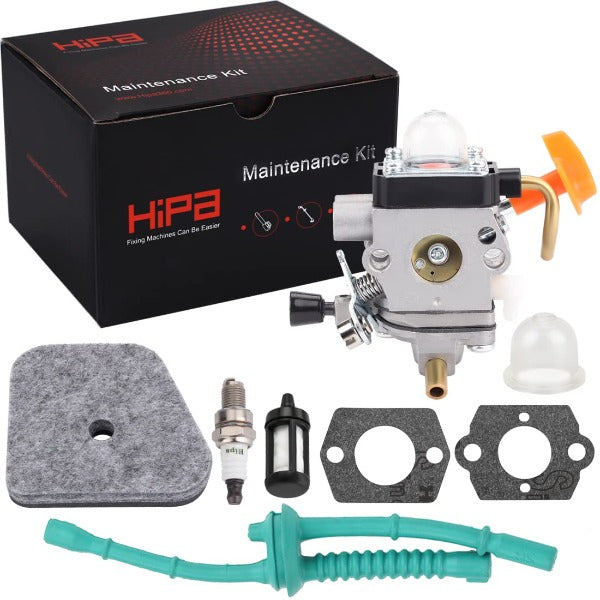

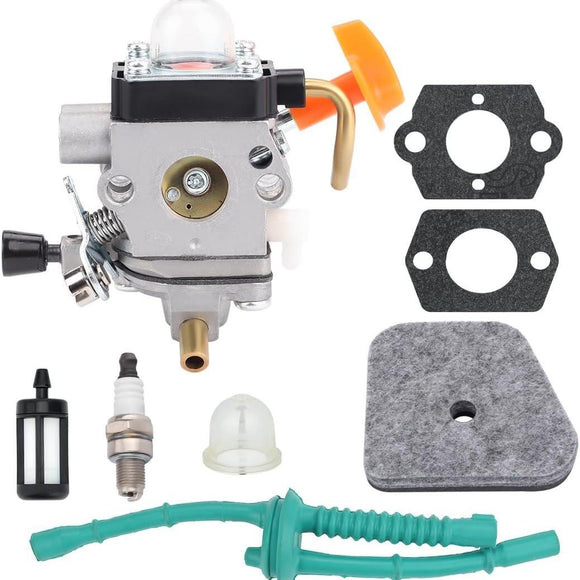

● Package include:
1x Hipa FS 90R carburetor, 2x gasket, 1x air filter, 1x fuel line, 1x fuel filter, 1x primer bulb, 1x spark plug;
Gasket Replace for Stihl 4114 149 1205 and 4128-129-0900.
Air Filters For Stihl 4180 120 1800.
Fuel Line for 4140 358 7702.
Fuel Filter for 0000 350 3502 / 0000 350 3506.
Spark Plug for Honda 31916-Z0H-003 Stihl 0000 400 7011, Honda 31916-Z0H-003, Husqvarna 531008615, NGK CMR6H,Champion RZ7C, NGK 3365.
 Primer Bulb Replaces WALBRO 188-13 188-13-1 615-744 49-027.

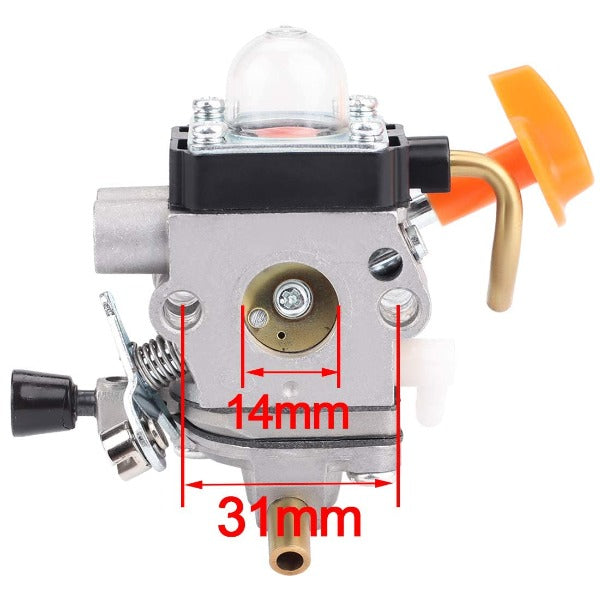

● FS110 CARBURETOR DIMENSIONS:
Mounting Hole Distance(Center to Center): 31mm, Throttle Bore Diameter：14mm, Choke Bore Diameter: 18mm, Venturi Diameter：10.5mm, Fuel Inlet Line Diameter：4.2mm, Fuel Return Line Diameter：4mm.
● Made with premium-quality materials:
heat-resistant, corrosion-resistant, Wear-resistant.
Brass Components(fuel fittings, throttle plate, main nozzle), Composite Rubber Diaphragms, Anodized Aluminum Carburetor Body.

Trimmer won't start? Runs rough? Hard to start? Blows black smoke? Or gas leaking?
If your Trimmer is suffering from these common engine problems, Hipa's carburetor repair kit offers you the ultimate solution. DIY with 1,000,000+ Hipa members to get your engine up and running like new again, once and for all.
