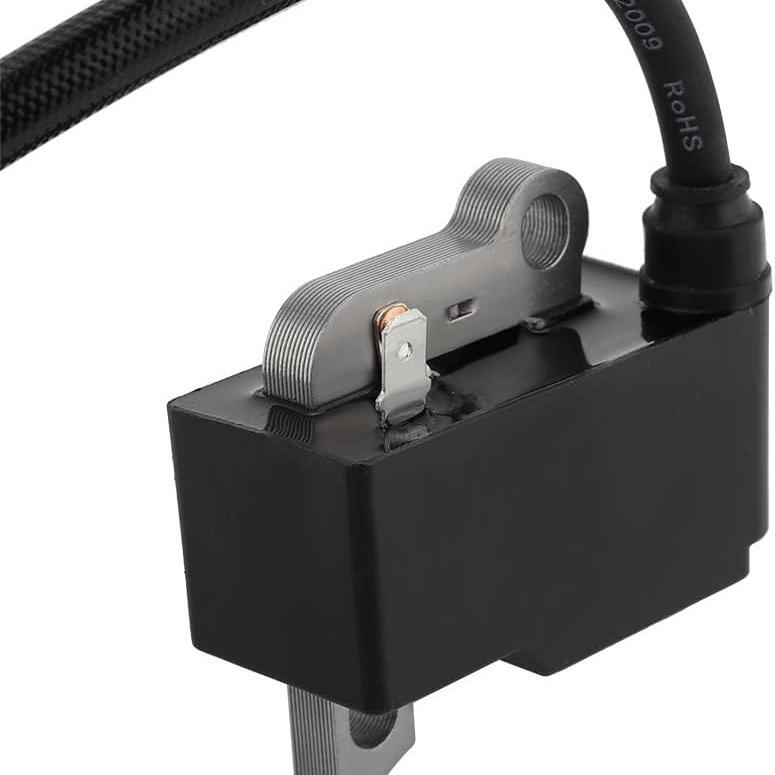

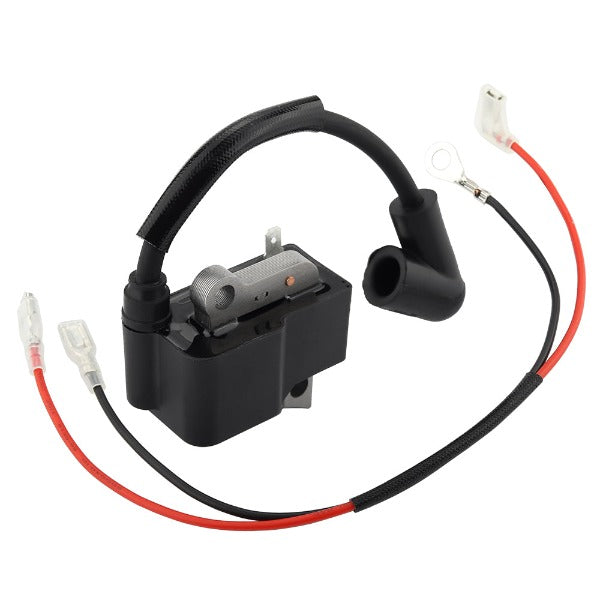

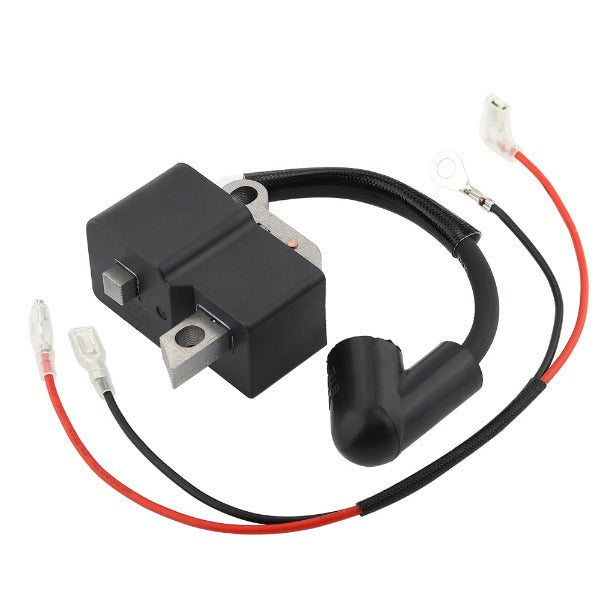

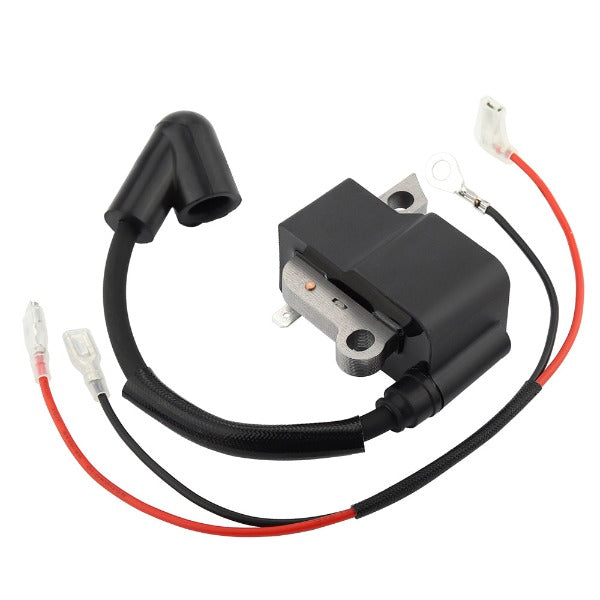

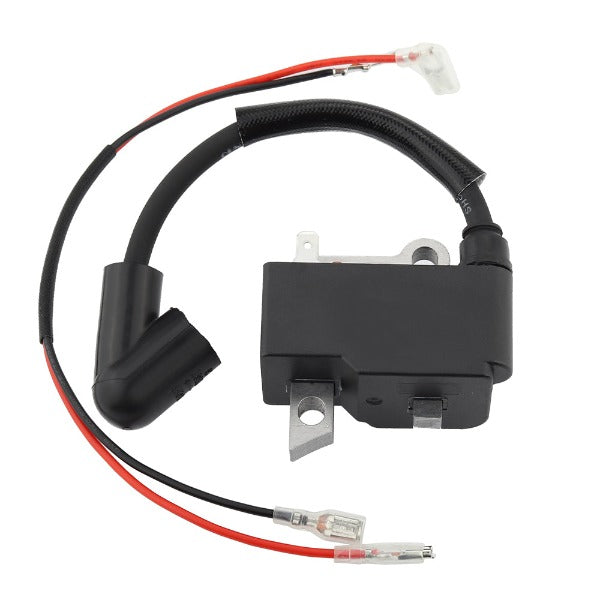

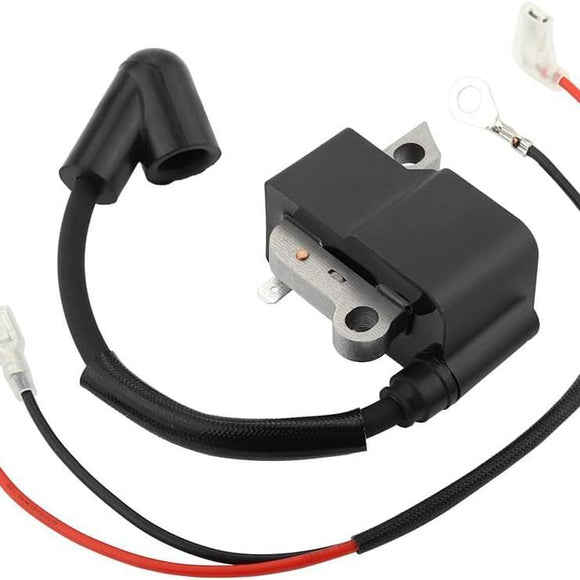

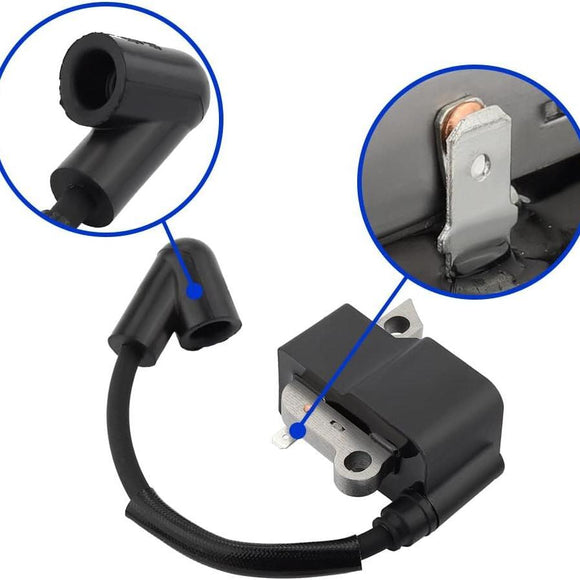

Hipa Ignition Coil for Husqvarna 435 435E 440 445 Chainsaw Replaces 573935702 505427201 573935701 544243801 for Jonsered CS2240 CS2240S CS2245-1
Hipa Ignition Coil for Husqvarna 435 435E 440 445 Chainsaw Replaces 573935702 505427201 573935701 544243801 for Jonsered CS2240 CS2240S CS2245-2
Hipa Ignition Coil for Husqvarna 435 435E 440 445 Chainsaw Replaces 573935702 505427201 573935701 544243801 for Jonsered CS2240 CS2240S CS2245-3
Hipa Ignition Coil for Husqvarna 435 435E 440 445 Chainsaw Replaces 573935702 505427201 573935701 544243801 for Jonsered CS2240 CS2240S CS2245-4
Hipa Ignition Coil for Husqvarna 435 435E 440 445 Chainsaw Replaces 573935702 505427201 573935701 544243801 for Jonsered CS2240 CS2240S CS2245-5
Hipa Ignition Coil for Husqvarna 435 435E 440 445 Chainsaw Replaces 573935702 505427201 573935701 544243801 for Jonsered CS2240 CS2240S CS2245-6
Hipa Ignition Coil for Husqvarna 435 435E 440 445 Chainsaw Replaces 573935702 505427201 573935701 544243801 for Jonsered CS2240 CS2240S CS2245-7

Hipa Ignition Coil for Husqvarna 435 435E 440 445 Chainsaw Replaces 573935702 505427201 573935701 544243801 for Jonsered CS2240 CS2240S CS2245

$16.98 USD

Shipping calculated at checkout

Hipa Store SKU: 01-3504

Model Fit Guide

HUSQVARNA Chiansaw 435 (2008-05) , 435 E (2008-05) , 445 (2007-03) , 445 (2007-09) ,s 445 E (2007-03) , 445 E (2007-09) , 450 E (2007-03) , 450 (2011-07) , 450 (2010-09) , CS2245 (2008-09) (2009-02) , CS2245 S (2008-09) (2009-02), CS2250 S (2008-09) (2009-02), CS2240 (2009-02) (2010-06)(2011-05), CS2240 S (2009-02) (2010-06)(2011-05), CS2245 (2010-07) (2011-07) , CS2245 S (2010-07) (2011-07) , CS2250 S (2010-07) (2011-07) ,
Compatible with 573935702, 505427201, 573935701, 544243801 Ignition Coil


This part fits the following Husqvarna chainsaws:

435 (2008-05) Chainsaw

435 E (2008-05) Chainsaw

440 E (2008-05) Chainsaw

445 (2007-03) Chainsaw

445 (2007-09) Chainsaws

445 E (2007-03) Chainsaw

445 E (2007-09) Chainsa

450 E (2007-03) Chainsaw

450 (2011-07) Chainsaw 450 (2010-09) Chainsaw

this part fits the following Jonsered chainsaws:

CS2245 (2008-09) (2009-02) Chain Saw

CS2245 S (2008-09) (2009-02)Chain Saw

CS2250 S (2008-09) (2009-02)Chain Saw

CS2240 (2009-02) (2010-06)(2011-05)Chain Saw

CS2240 S (2009-02) (2010-06)(2011-05)Chain Saw

CS2245 (2010-07) (2011-07) Chain Saw

CS2245 S (2010-07) (2011-07) Chain Saw

CS2250 S (2010-07) (2011-07) Chain Saw

Please note replacing the module would differ based on your unit, however the basic steps would be the same.

• Remove the housing/covers from the unit

• Remove the spark plug

• Bind the cylinder

• Remove the air filter cover and side cover

• Remove the throttle cable from the carburetor

• Disconnect the wires

• Remove old ignition coil

• Install new ignition coil

• Reassemble and test the unit

The Notices During Installation



  1. Please check the kill-switch wire and make sure it is connected right otherwise there will be no spark if this is not connected correctly.
  2. When installing the new ignition coil, make sure to rotate the flywheel into a position where the magnets on the flywheel face the ignition coil.
  3. Using a folded piece of paper to adjust the correct gap between ignition coil armature and magnet.
  4. When tightening the screws of the ignition coil, ensure that the flywheel can still rotate freely.
  5. Check again that the kill switch wire is still correctly connected and didn't come loose in the process.
