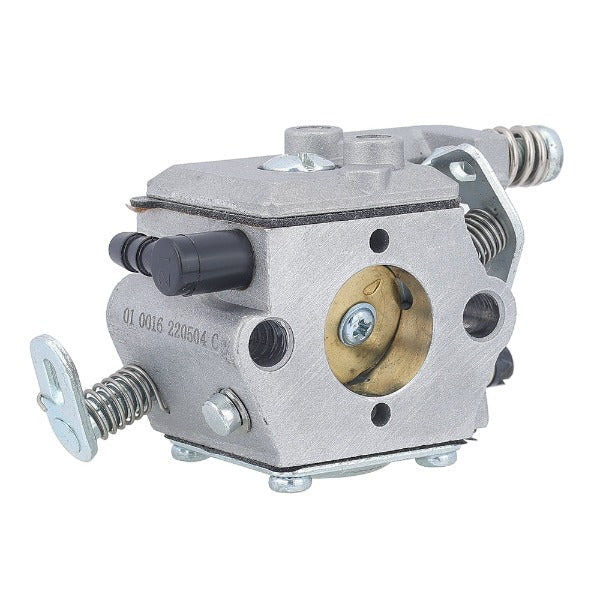

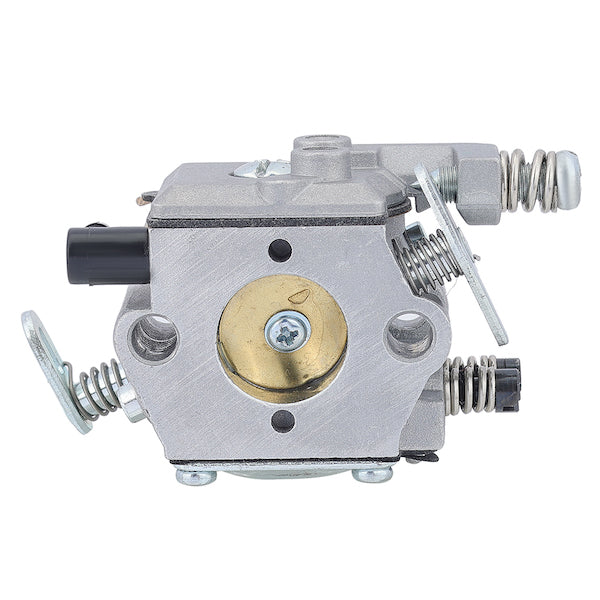

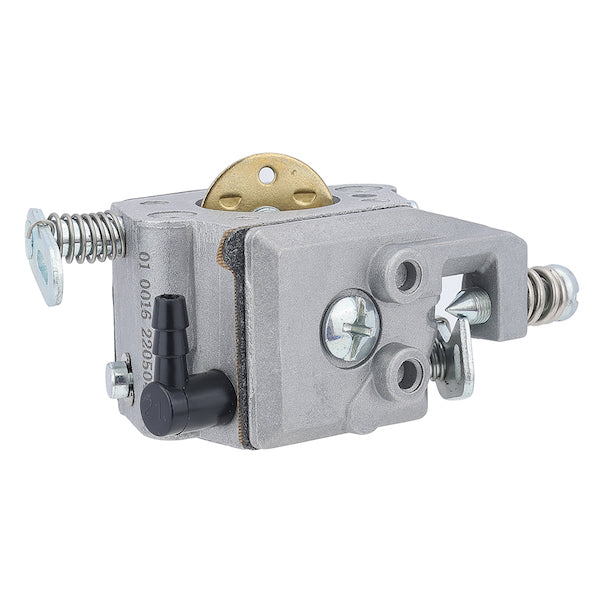

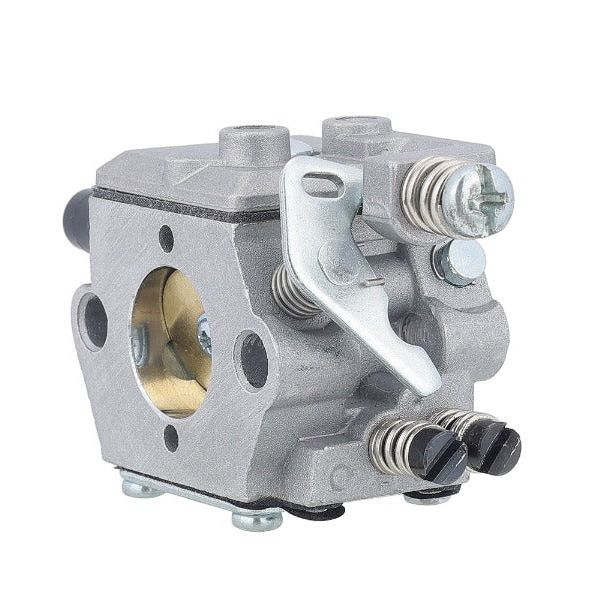

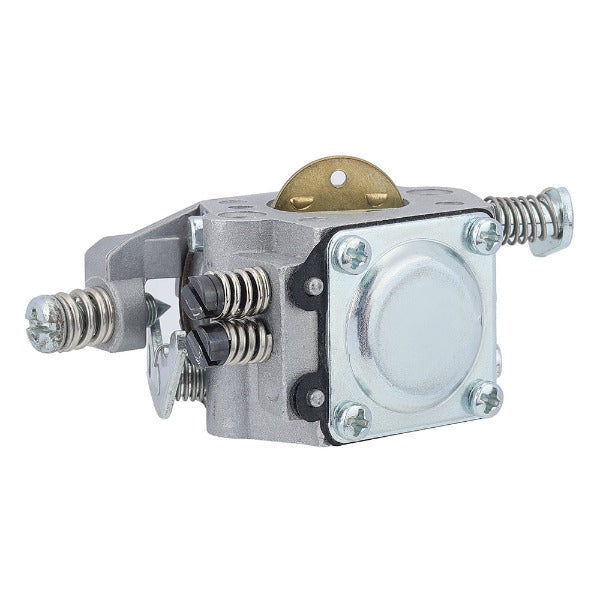

(Walbro type) Carburetor Kit For Stihl MS 170 180 180C 018 017 Chainsaw # 1130-120-0608 1130-120-0600 WT-325 WT-325A without Vent Tube Carb

$13.98 USD $15.98 USD Save $2.00 USD

Shipping calculated at checkout

Hipa Store SKU: 01-3014-B2

Model Fit Guide

Please note that this carburetor doesn't vent tube, and choose the correct carburetor for your needs.

Parts for Stihl Gas Chainsaw 017 018 MS170 MS180 MS180C MS 170 180 180C

Parts Replacement:

Carburetor Replaces OEM part
1130 120 0600 (1130-120-0600, 11301200600),
1130 120 0608 (1130-120-0608, 11301200608),
1130 120 0601.
Walbro WT-325, WT-325A.
Zama C1Q S43B.

Replace 1130 647 9400 Fuel Line

Replace 1130 358 7701 Fuel line

Replace 1123 640 3800 Oil Filter

Replace MPN 0000 350 3502, 0000 350 3506 Fuel Filter
Fits Fuel Line 3/16" ID
Length: 1 3/4" OD: 11/16"

Replace 0000 400 7000/0000 400 7016, NGK BPMR7A Spark Plug

Replace 1130 007 1800 Air Filter

Replace 1123-149-0500 STIHL MUFFLER EXHAUST GASKET


Hipa Youtube Video of Stihl MS170

Hipa carburetor with maintenance kit offers you an ultimate solution to solve your chainsaw's hard to start or won't start problems and more to get it up and running like new again.

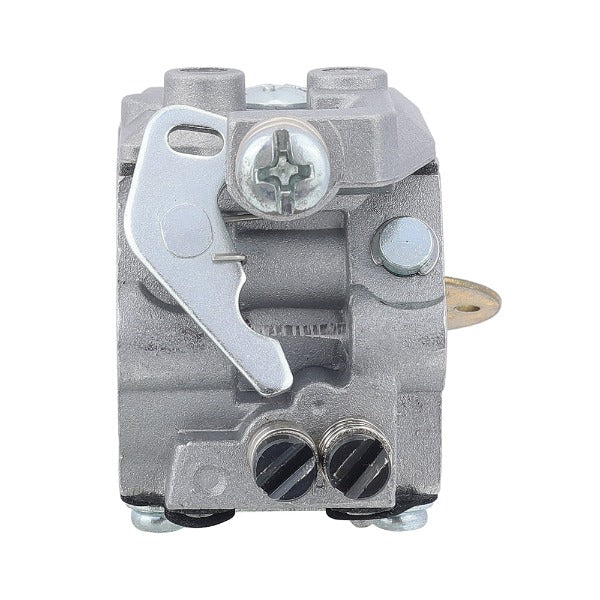

Adjusters on carburetors
Drain screw: used to drain the fuel out of the carburetor.
Idle mixture screw: controls the intake of fuel to adjust the engine for optimum running.
Idle speed screw: controls the intake of air to adjust the engine’s idle speed.
High-speed & low-speed screw: adjustment for high and low speed.
Turn clockwise to decrease the RPM (revolutions per minute) while turning counterclockwise to increasing the RPM. The amplitude for each adjustment is 1/4 turn.
